Smart File Exchange Locker AL5002

Smart File Exchange Locker AL5002

  • Model:AL5002

  • Product Name: Smart File Exchange Locker
  • Brand:AituoLink

  • Delivery:25-30 working days

  • Warranty:1 year


×Enter your message

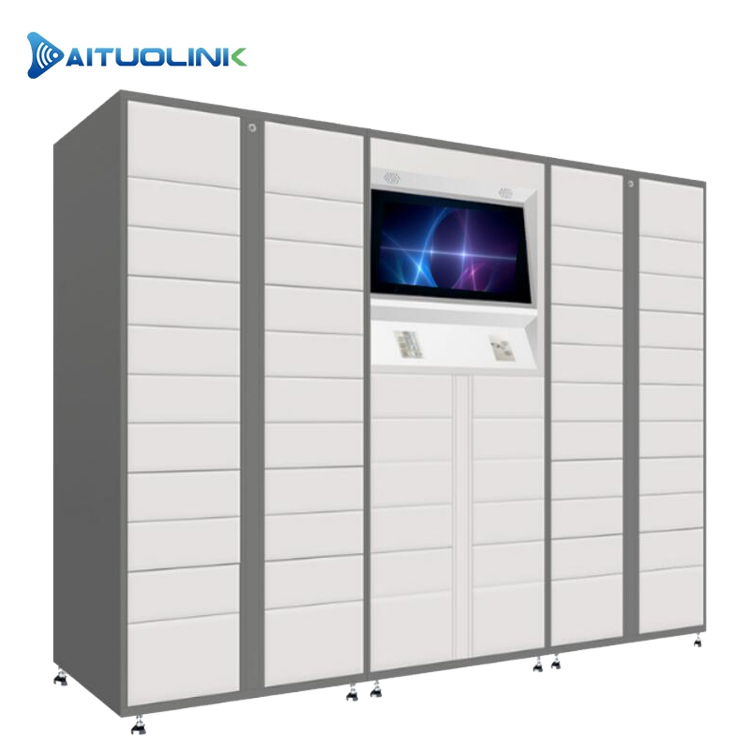

    Smart File Exchange Locker, also known as Smart File Transfer Locker, Electronic File Exchange Locker, Intelligent Cloud Locker, etc., is a smart locker with functions of networking, sending and receiving, short message verification code notification. The main manifestation is that the staff of government organs (Public Inspection Law, etc.) put the documents needed by the parties into intelligent In the exchange cabinet, and through the system to send short message verification code to the parties, the parties only need to go to the government office hall, in the smart document exchange locker terminal display screen input the existing verification code and take out the documents they need.


    1. High efficiency, convenient for users to take out documents in time
    2. Computer operation, low error rate
    3. Timeliness, the parties do not have to run the wrong way
    4. Large amount of information, convenient inquiry and statistics

    How is Aituo locker production?

    Aituo Production Mahine Line

    Model Number AL5002
    Product Name Smart File Exchange Locker/ Smart File Locker
    Material High Quality Galvanized Steel
    Front door/side panel: 1.2mm
    Level panel:1.0mm
    Back panel:0.8mm
    Screen 21.5 inch touchable screen
    Computer Industrial host, Android system,RK3288/4 core frequency 1.8 Ghz,2G Ram, 8G EMMC, RS485 Port*2, 4G and WIFI model is optional
    Barcode Reader 2D Barcode Reader
    Lockers (Doors) Secured Electronic Lock
    Speakers Bi-channel Speakers
    Kiosk Size H2020*W500*D500(mm)
    Sub Cabinet Size H2020*W940*D500(mm)
    Kiosk Door N/A
    Sub Cabinet Door 22 Doors
    L box: H300*W425*D500mm x 2
    M box: H200*W425*D500mm x 6
    S box: H100*W425*D500mm x 10
    Working temperature 0℃ -- 50 ℃
    Net Weight: Kiosk:85Kgs/Sub Cabinet:128Kgs
    Gross Weight: Kiosk:115Kgs/Sub Cabinet:168Kgs

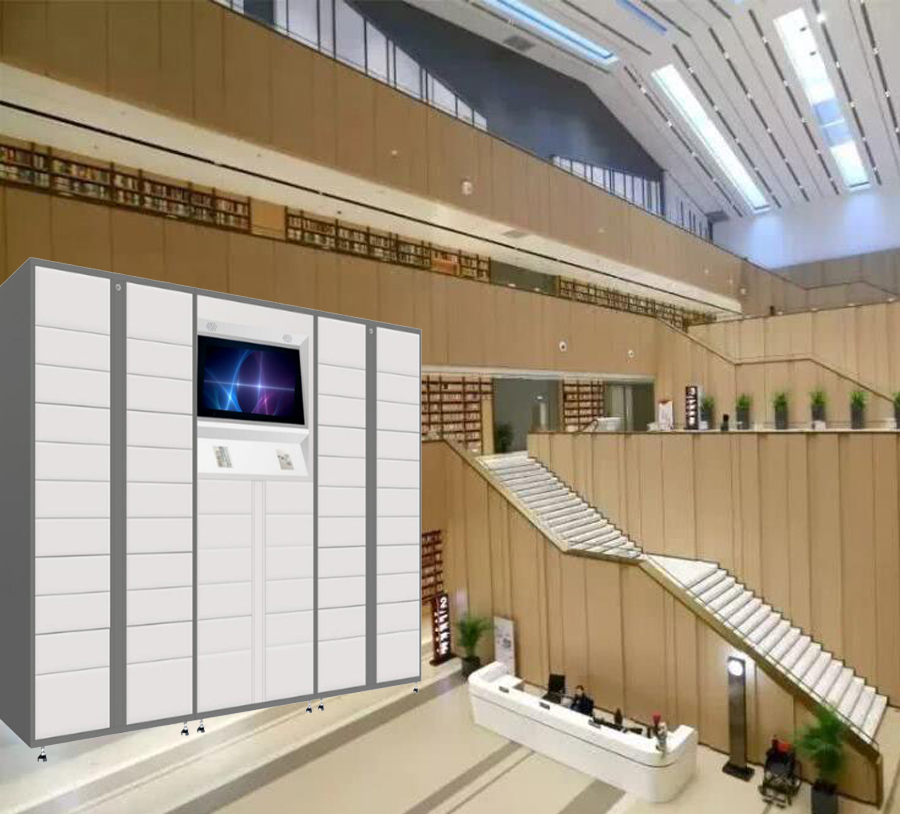

    Application: the preservation and receipt of documents of state government organs, bank, etc.


    We use high Quality Lock Board and Lock System.
