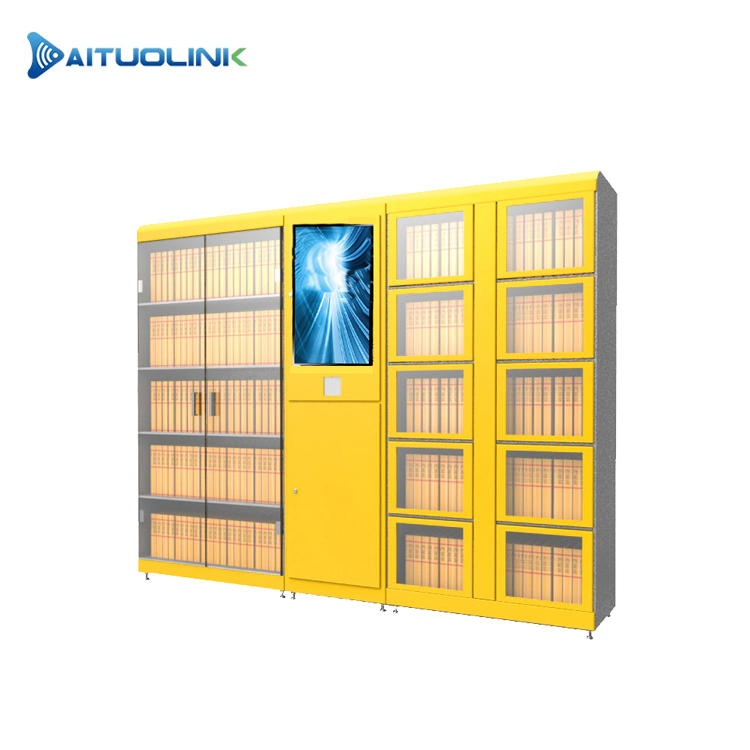

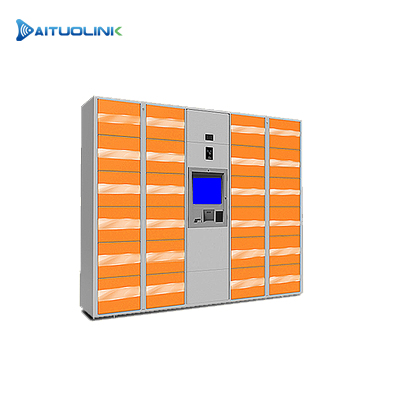

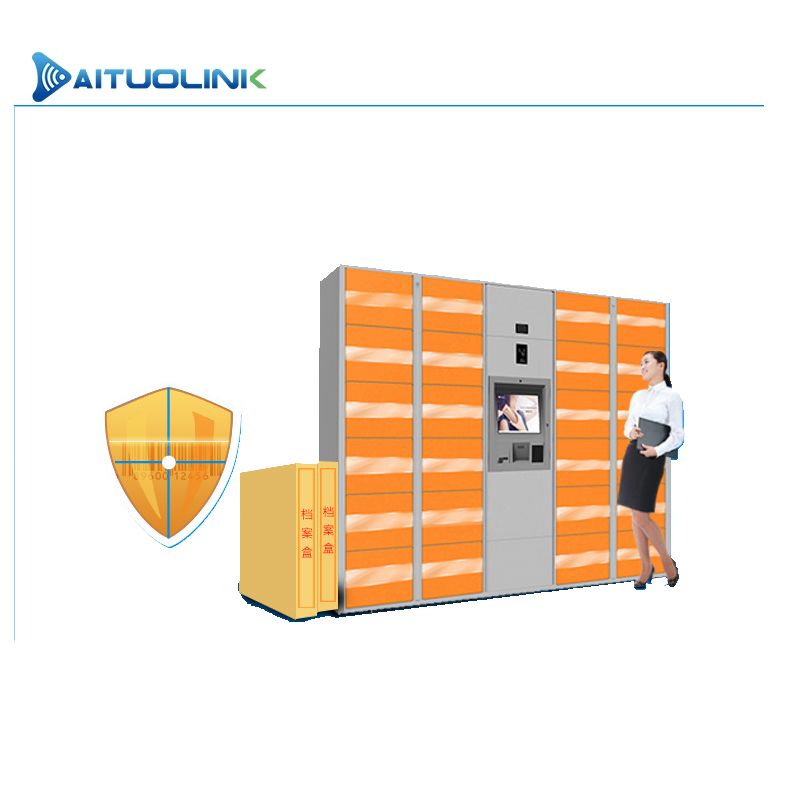

Intelligent RFID Identification Storage Locker AL5003

Intelligent RFID Identification Storage Locker AL5003

  • Model:AL5003

  • Brand:AituoLink

  • Delivery:25~30 working days

  • Warranty:1 year


×Enter your message

    Important items and safe keeping of archives are important, but as more and more manageable file, the traditional management method is not only low consumption of manpower, efficiency,
    and easy to cause the loss of important files, to this, the development of RFID intelligent identification storage locker can effectively solve the problem of traditional management methods.


    1. It is composed of central data server S and management terminal, and centralized _, storage and processing of archives management and supervision are the core of the whole structure.
    2. Complete the integration of RFID tags of archival information and the loading of new archives and other work by the inspection end and label issuing.
    3. Assist the crotch case administrator to write relevant information when the file is lent, and check the file and verify the information in the RFID tag when it is returned
    4. It is convenient to query the location of each case file and monitor the status of the file in real time through the terminal and handheld computer.
    5. Set the account and the corresponding system functions and permissions of the account.
    6. The terminal system is the terminal intelligent storage cabinet machine, which is composed of the master control and the auxiliary control. The corresponding cabinet can be opened by the master control at first glance
    7. Record the information and number of documents of all documents in the door R FID label, etc. Users can use the background management system to search and read documents in the door and whether they have the right to open the door.

    How is Aituo locker production?

    Aituo Production Mahine Line

    Model Number AL5003
    Product Name Smart bookcase locker
    Material High Quality Galvanized Steel(Customize)
    Front door/side panel: 1.2mm
    Level panel:1.0mm
    Back panel:0.8mm
    Screen 21.5 inch touchable screen
    Computer Industrial host, Android system,RK3288/4 core frequency 1.8 Ghz,2G Ram, 8G EMMC, RS485 Port*2, 4G and WIFI model is optional
    Lockers (Doors) Secured Electronic Lock
    Speakers Bi-channel Speakers
    Cabinet Size H1880*W1420*D450(mm)
    Kiosk Door N/A
    Sub Cabinet Door 20 Doors
    Box capacity:H304*W320*D450(mm)
    Storage temperature -10℃ -- 50 ℃
    Working temperature 0℃ -- 50 ℃
    Net Weight: Kiosk:85Kgs/Sub Cabinet:128Kgs
    Gross Weight:

    Kiosk:115Kgs/Sub Cabinet:168Kgs

    OEM Color Option:

    OEM Size for Customer:

    Applicable scenarios: business buildings, government departments, government agencies, enterprises and institutions and other places that need to store documents and transfer documents

    We use high Quality Lock Board and Lock System.
