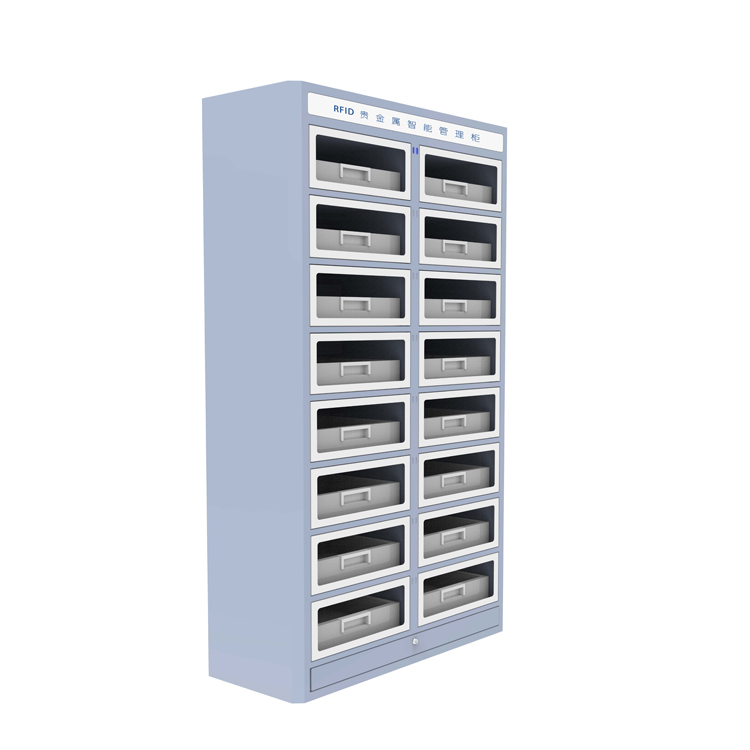

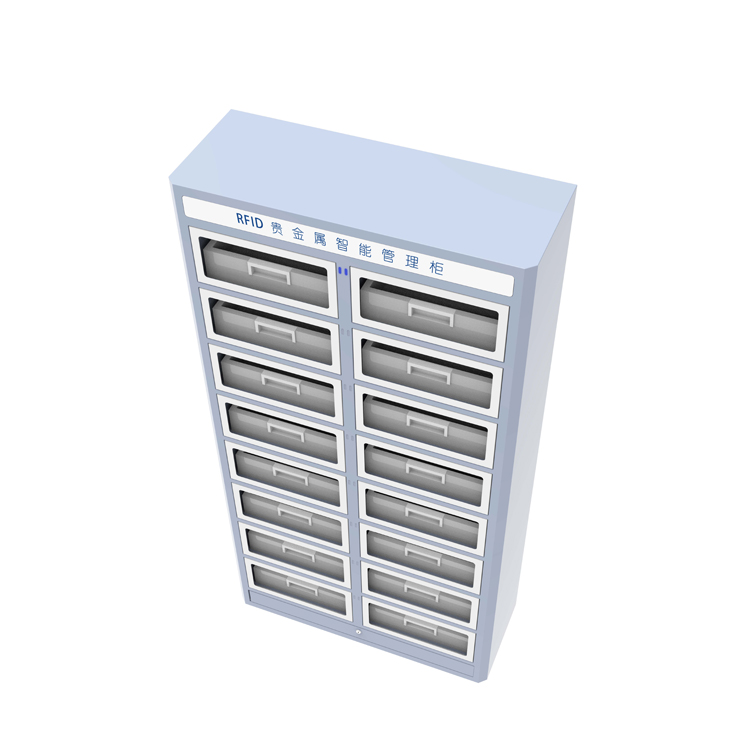

Smart Locking Precious Metal RFID Cabinet UHF Storage Locker for Tools Manganment

Smart Locking Precious Metal RFID Cabinet UHF Storage Locker for Tools Manganment

  • Model: AL5104
  • Product Name: Smart Locking Precious Metal Lockers Storage UHF RFID Cabinet for Tools Manag ement
  • Brand: Aituo
  • Delivery: 25-30 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





        Smart RFID tools management locker supports tags of ISO18000-6C EPC C1/G2,  it also supports RS232, RJ45 (TCPIP) and other communication interfaces. All goods in the cabinet can be count is 30s. There are drawer slides inside. The slides can pull out at least one third of the board for easy removal and return. When the drawer is pulled out, the precious metal can't be touched or stuck. The signal is blocked well between the grids and the grids can be located in real time.

    Model Number AL5104
    Products Name Precious Metal Locker
    Raw Material Cold Rolled Steel 1.0mm
    Working frequency 865~868MHz/902-928MHz
    RFID Standards  ISO 18000-6C(EPC C1G2)/ ISO18000-3Hz
    Volume precious metals of size 20*80mm ≥1200 pcs
    RFID Output Power 5~33dBm adjustable
    Internet interface  10M/100Madaptive for Ethernet interface(4G optional )
    Voltage supply AC220V±10%/50Hz±1Hz
    Screen N/A
    Blocking Performance ≤5cm
    Dimension 1877*1040*550mm.



    Application:

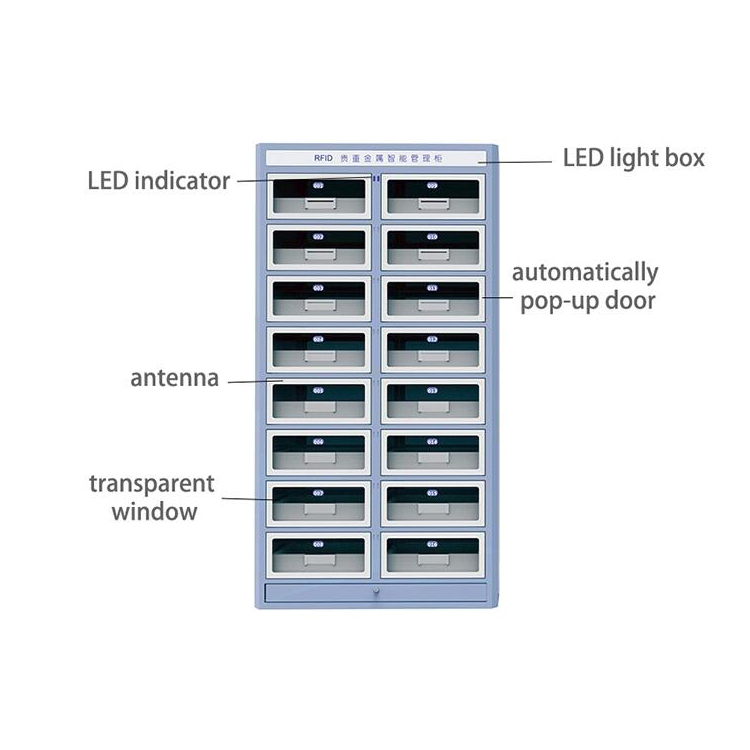

    1.Independent RF signal sensing device at each shelf  for accurate counting.

    2.transparent windows for easy checking

    3.optional for remote control
